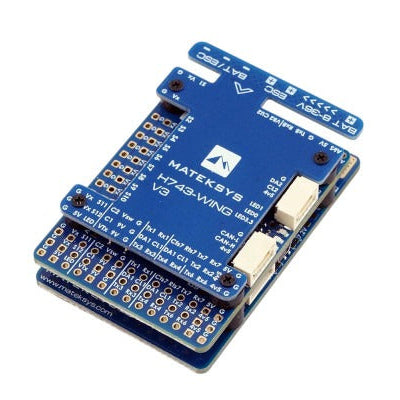

Flight Controller Matek H743 WING v3

The Matek H743-WING V3 is a high-end flight controller specifically designed for fixed-wing aircraft, flying wings, and VTOL platforms. Featuring an ultra-powerful H7 processor, extensive connectivity options, and support for the latest firmware, this controller is the ultimate choice for professional UAVs, long-range missions, and complex autonomous systems.

The V3 version features updated sensors (IMU) and optimized circuitry for enhanced flight reliability.

Features:

• Extreme Performance: Powered by the STM32H743VIT6 MCU running at 480MHz with 1MB RAM and 2MB Flash, capable of handling complex flight algorithms with ease.
• Extensive Connectivity: Features 7 UART ports, 13 PWM outputs for servos and motors, and CAN Bus support.
• Dual BEC System: Powerful onboard regulators: 5V/2A for peripherals and a switchable 9V/12V BEC for video transmitters and cameras.
• Compatibility: Full support for ArduPilot, INAV, and BetaFlight firmware.
• Peripherals: Integrated OSD (AT7456E), MicroSD card slot (Blackbox), and high-precision barometer.

Specifications:

• MCU: STM32H743VIT6, 480MHz
• IMU: ICM42688P (SPI)
• Barometer: DPS310 (I2C)
• OSD: AT7456E (SPI)
• Blackbox: MicroSD Card Slot (SDIO)
• Interfaces: 7x UART, 1x I2C, 1x CAN, 13x PWM, 3x ADC
• Input Voltage: 9~36V (3-8S LiPo)
• BEC 5V: 2A (Cont.), 3A (Burst)
• BEC Vx (Video): 9V/12V (Switchable), 2A
• BEC Servo: 5V/6V/7.2V (Adjustable), 8A
• Mounting: 30.5 x 30.5 mm (M4/M3)

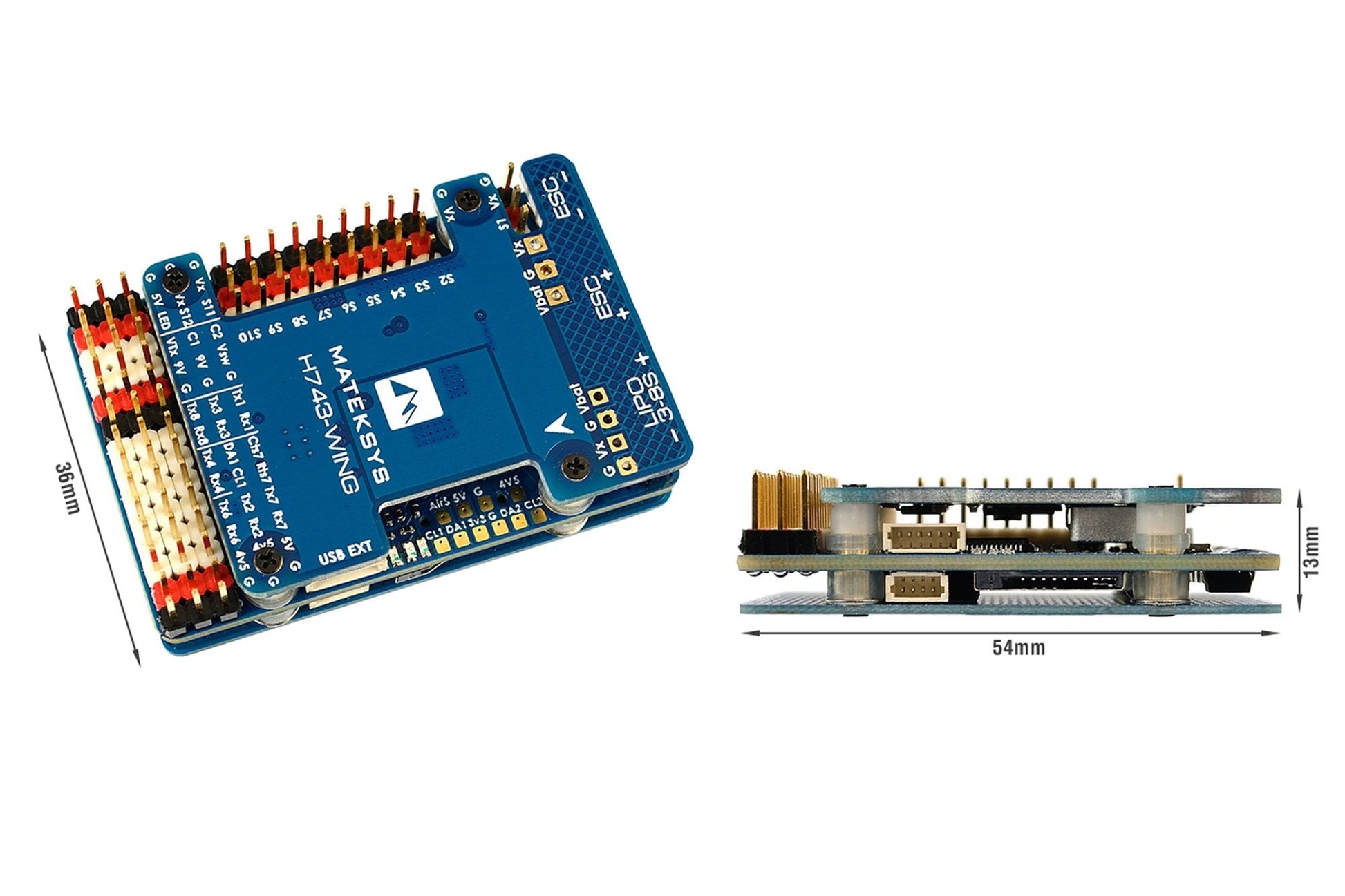

• Dimensions: 54 x 36 x 13 mm
• Weight: 30g

Kit:

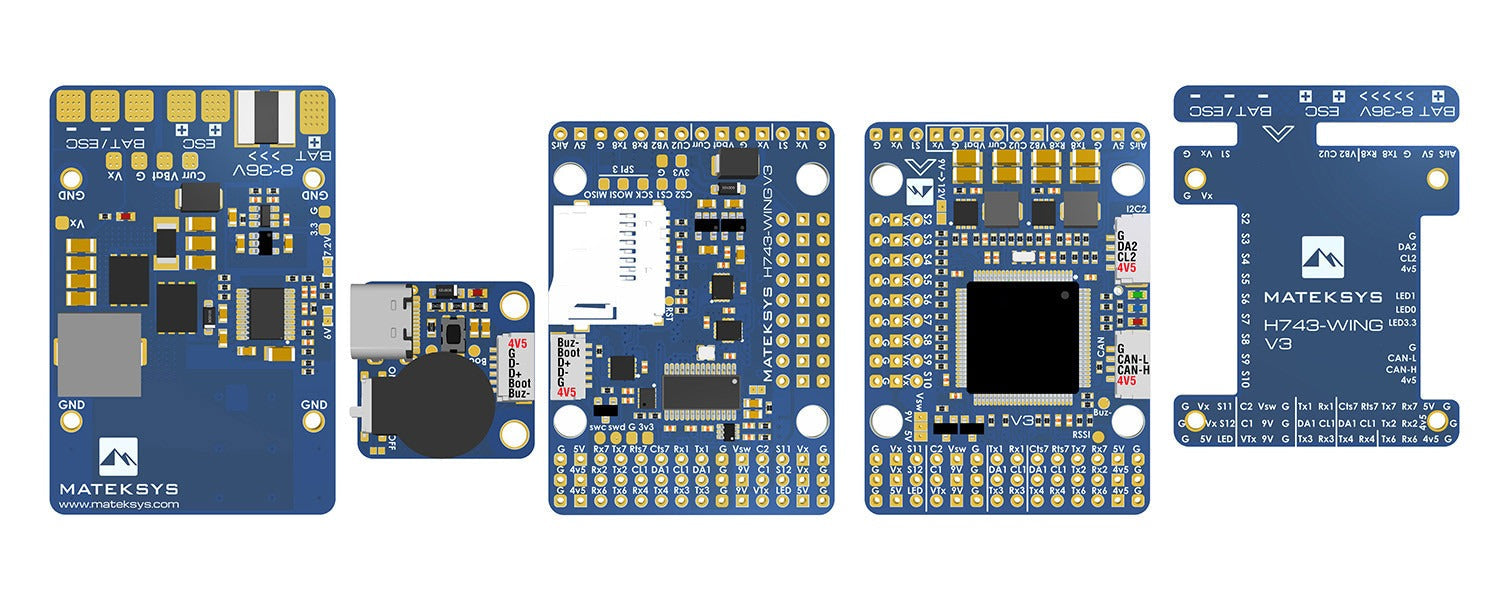

• 1 x Matek H743-WING V3 Flight Controller

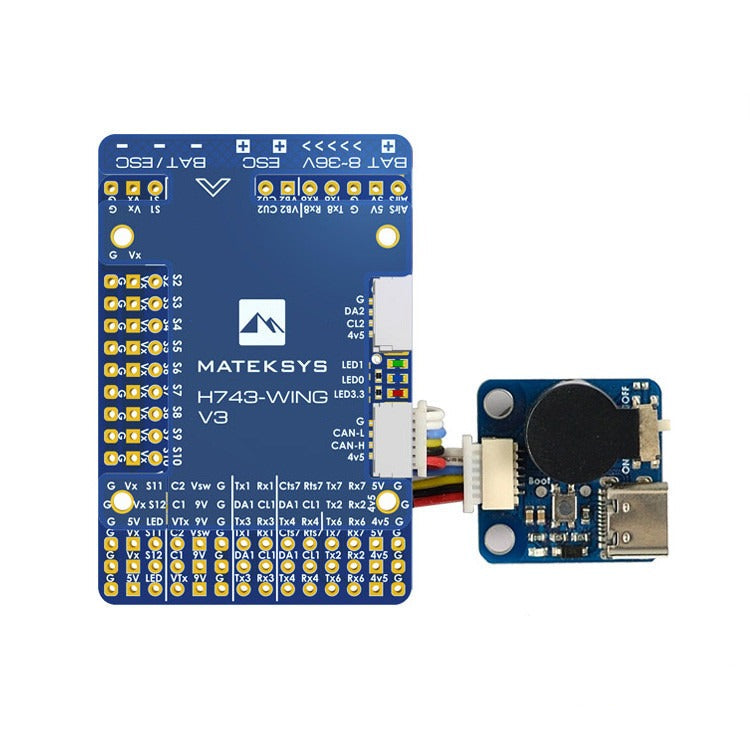

• 1 x USB (Type-C) Extender Board
• 1 x Set of cables (JST-SH / JST-GH)
• 1 x Set of Dupont pins
