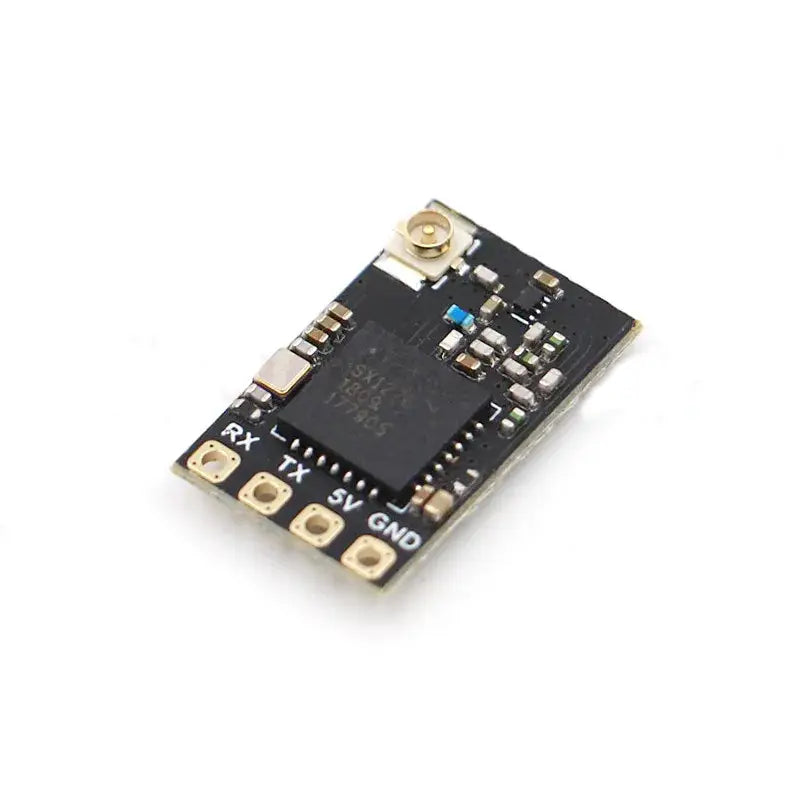

RX CYCLONE ELRS 915MHz

The CYCLONE ELRS 915MHz receiver is a reliable component to ensure stable communication between the pilot and the drone. This receiver operates at 915MHz and is part of the ExpressLRS long-range communication system. The ELRS Cyclone provides a high quality signal and is only compatible with transmitters and control equipment that support the same frequency as the receiver.
To adapt to regional requirements, the frequency can be changed during firmware (868/915 MHz). The ELRS receiver comes with a T-immortal antenna (dipole), which guarantees optimal signal reception.

Specs:

• Model: ELRs-915m-Nano

• Frequency: 915 Mhz

• Antenna: T-shaped

• Chip: SX 1276+ESP 8285

• Target: BetaFPV 900RX

• The color is black

• Power: 100 mW

• Input voltage: 3.6V-5.5V

• Connector type: IPEX1

• Receiver weight: 0.6g (without antenna)

• Size: 11mm * 18mm

Kit:

• 1x receiver CYCLONE ExpressLRS 915MHz Nano

• 1x T-shaped antenna

• 1x heat shrink

• 4x 30AWG silicone wires

• 2x 4pin 2.54mm connector
