Servo Dsservo DS3218MG 270°

The Dsservo DS3218MG (270°) is a variant of the popular 20kg servo featuring an extended rotation range of up to 270 degrees. This makes it an ideal choice for robotics projects (humanoid robot joints, manipulator arms), camera pan/tilt platforms, and other mechanisms where the standard 180 degrees is insufficient.

This model retains all the strengths of the series: full metal gears, IP66 waterproofing, and a durable case with an aluminum insert for efficient cooling.

Features:

• Extended Angle: 270° operating range allows for more complex movements without additional mechanical gearing.
• High Power: Torque up to 21.5 kg/cm enables handling of heavy loads.
• Durability: Hard aluminum and copper alloy gears ensure a long service life.
• Protection: IP66 rated (dust and splash resistant).
• Heat Dissipation: CNC aluminum middle shell prevents motor overheating.

Specifications:

• Control Angle: 270° (at 500-2500μs)
• Operating Voltage: 4.8V – 6.8V
• Operating Speed (5V): 0.16 sec/60°
• Operating Speed (6.8V): 0.14 sec/60°
• Stall Torque (5V): 19 kg/cm
• Stall Torque (6.8V): 21.5 kg/cm
• Motor Type: DC Motor
• Gear Type: Metal
• Spline: 25T
• Dead Band: 3μs
• Dimensions: 40 x 20 x 40.5 mm
• Weight: 60g

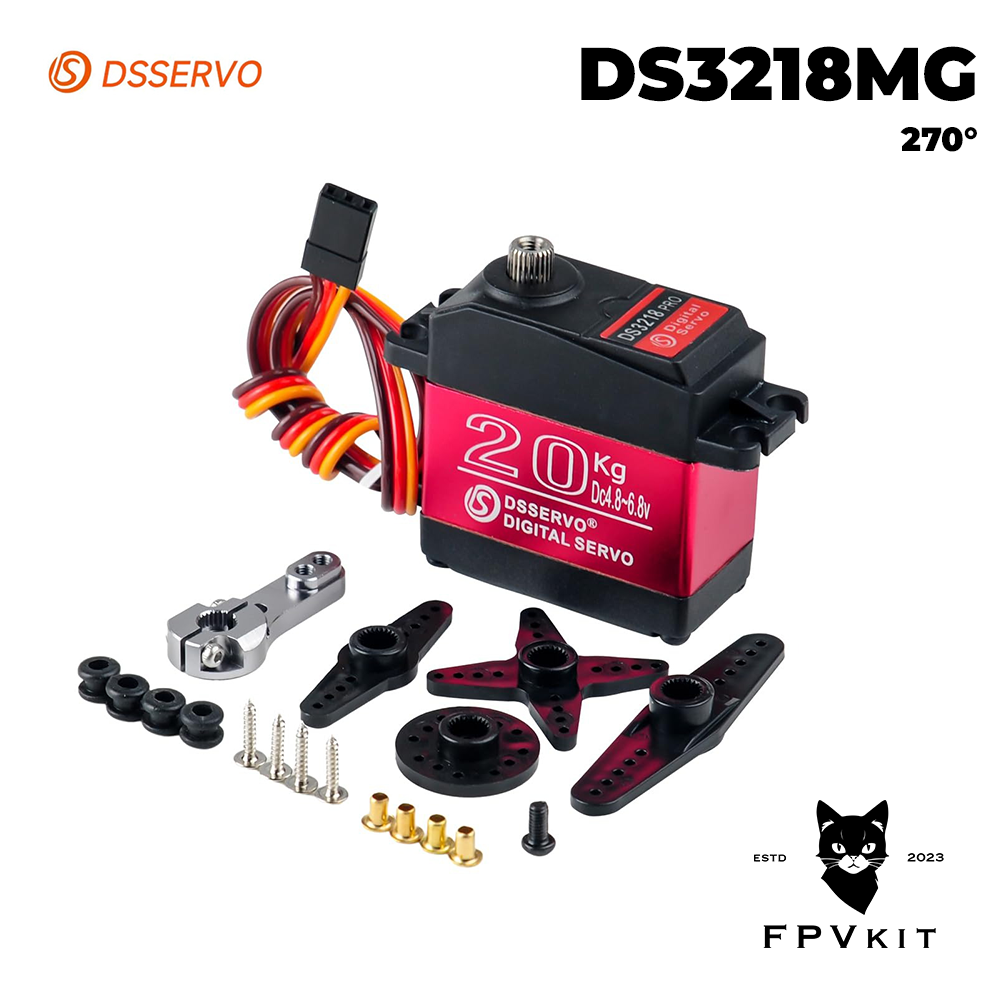

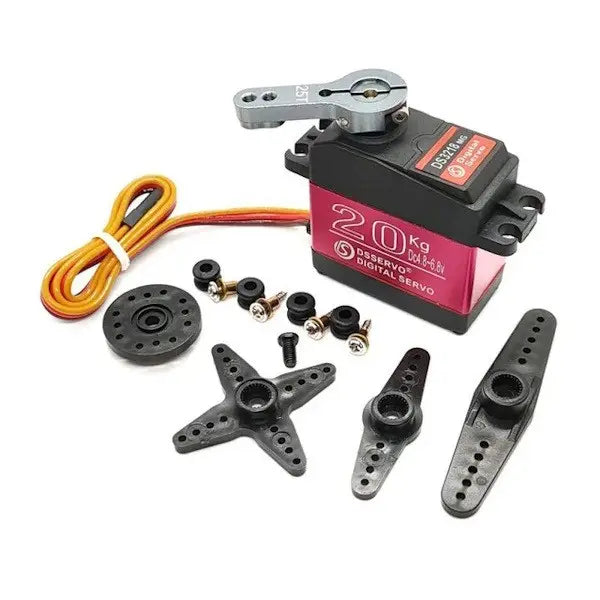

Kit:

• 1 x DS3218MG 270° Digital Servo
• 1 x 25T Metal Servo Arm (Red)
• 1 x Set of plastic accessories and screws
