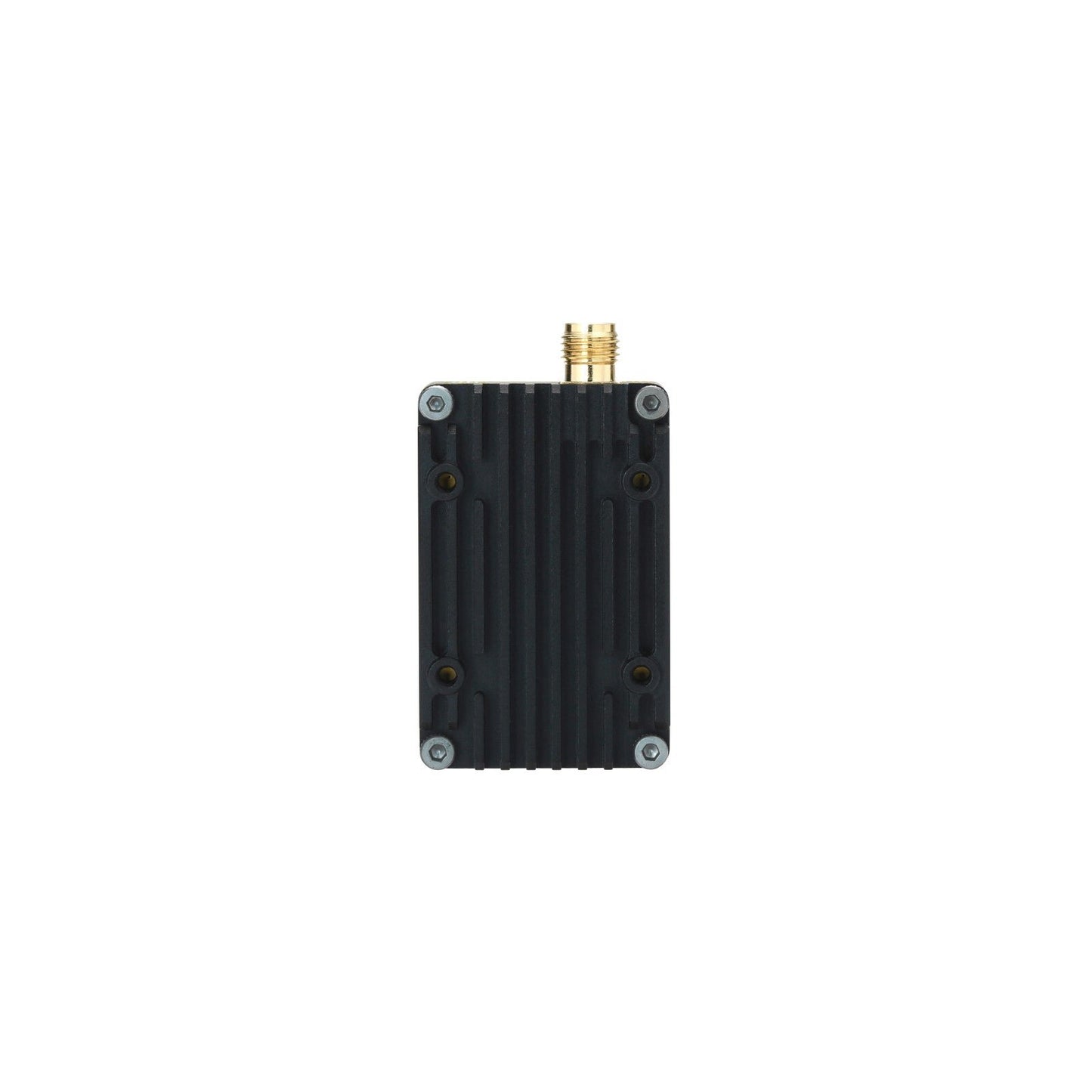

VTX RushFPV 3.3GHz 2W (with antenna BAND A)

The Rush 3.3GHz 2W VTX video transmitter is a high-performance transmitter for FPV drones that provides a stable and clear signal over long distances. Transmission power of more than 2W allows you to maintain high video quality even in difficult conditions. Support for 8channels with BAND-A (3330-3470MHz) frequency bands adds versatility and reduces the chance of interference. Thanks to the 2dBi antenna gain, it can transmit over a long distance without losing quality. The Rush video transmitter is compact, durable and reliable, making it the perfect choice for any environment.

Features:

• Designed for long-haul flights
• Maximum output power of up to 2.5W in an airflow environment
• Customized digital PLL circuit, chip-level integration
• No frequency drift
• High transmission efficiency
• Compact, robust and reliable
• Individual high-performance circular polarized antennas

Specs:

• Output power: 25/200/1000/>2W
• Frequency: BAND-A 3330-3470MHz 8CH

• Input voltage: DC 7-30V
• Antenna gain: 2dBi
• Protocol: IRC Tramp
• Video format: CVBS NTSC/PAL
• Connector: SMA
• Dimensions: 40.5x26x8.5mm
• Weight: 16.5g

Notes:
For button control: Short press the button to switch channels, the blinking time of the blue LED indicates the current channel. Long press the button to switch power level, the blinking of the red LED indicates the current power level, the red LED is constantly on means that the VTX enters PIT (0 power) mode.

Kit:

• 1 x Rush 3.3GHz 2W VTX video transmitter
• 1 x LSD 3.3GHz antenna
• 1 x 8Pin cable
